Unified Transform System

Universal Control Panel

---

Transform Space

Switch between Islands and Texure-based transforms in 3D View.

Mode

Order

---

Transform Types

Move

Move Selected Islands

• Move Increment - The value on which the island will be shifted
• Grab Increment - Get the distance between two vertices or edge lengths and use it as the offset value for the move. The resulting value will be used as the Move Increment value

---

Scale

Scale selected Islands

Scale Mode

---

Rotate

Rotate selected Islands

• Rotate Increment - The value on which the island will be rotated
• Select Island by Direction - Select island by direction (Horizontal, Vertical, Radial, Not Aligned). Here is a full description of the operator
• Orient by selected - Reorient the island by selected elements (vertices, edges, faces)

---

Flip

Flip Selected Islands

• Always Center - Always use the center of the island as a flipping pivot

---

Fit

Fit Island to UV Square

• Face by Face - Fit Face by Face
• Padding - Clearance between island and UV Square bounds
• Bounds - It makes it possible to fill out not UV Square but any other area
• Fill Islands - Fit Islands from the center without keeping proportions

Fit into Region

• Grab Region: Selection / Island - Allow to grab Region size in different manners
• Bottom Left: Top Right: - The bounding box of the region
• Show Region - Show region using Annotations
• Hide Region - Hide Fit region
• Fit into Region - Fit the selected island into the Region described in the bounding box

Using fit region

---

Align

Align selected Islands

• Vertex by Vertex - Mode for vertex alignment. Aligns vertex by vertex. Transform selection mode only
• Center by Axis - Align selected islands horizontally or vertically in the center
• Align to - Relative to what to perform the alignment
  • Selection Bounding Box
  • UV Area Bounds
  • Position
  • 2D Cursor
  • To Active Component
  • Active UDIM tile - To active UDIM tile
  • Tile Number - To UDIM tile with the specified number

---

Distribute

Distribute, Sort and Arrange selected Islands

Islands mode	Selection mode

• Islands Mode:

  • Distribute & Sort - Distributes and Sorts selected Islands
  • Arrange - Arrange selected Islands

• Selection Mode:

  • Distribute - Distribute vertices along the line

Distribute And Sort

Distributes and sorts selected islands

• Direction Axis - The axis along which distribution will take place
• Start Point Offset - Islands location start point
• Sort by - Sorting condition
  • UV Position
  • UV Area
  • Mesh Area
  • Texel Density
  • UV Coverage
  • Island Mesh Position X
  • Island Mesh Position Y
  • Island Mesh Position Z
• Reverse - Change the sorting direction to reverse
• Margin - Distance between distributed Islands
• In Place - Leave not active axis as is

Distribute And Sort example

---

Distribute vertices

Distribute vertices along the line

• Orient Loop Along - Alignment options
  • In Place - The beginning and end of the loop remain in place
  • U Axis - Along U axis
  • V Axis - Along V axis
  • Auto - Will be aligned to the closer axis
• Reverse Direction - Change the direction of the aligned line
• Spacing - How to create spaces between points
  • UV - Like in the current uv positions
  • Geometry - Like in the mesh
  • Evenly - Spread evenly
• Start Positions - Position of starts of loops
  • As Is
  • Max
  • Averaged
  • Min
• Lock - Locks start and end positions
• End Positions - Position of ends of loops
  • As Is
  • Max
  • Averaged
  • Min

Distribute Verts example

---

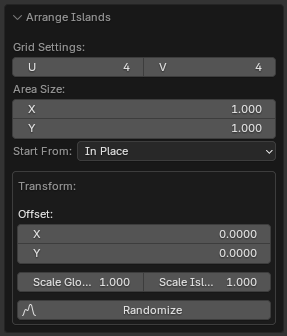

Arrange Islands

Organizes selected UV islands into a structured grid layout with precise control over row/column density, container bounds, scaling, and distribution origins.

This operator is ideal for organizing repeating modular assets, atlas components, or tidying up scattered UV islands into predictable array layouts.

• Grid Settings (U / V) — Sets the total number of columns (U) and rows (V) in the arrangement grid.
• Area Size (X / Y) — Defines the overall width and height dimensions of the grid container (e.g., 1.0 x 1.0 corresponds to a single UV tile).
• Start From — Defines the origin reference point from which the grid array is constructed:
  • In Place — Builds the grid starting from the current location of the primary UV island.
  • UV Area — Anchors the grid start at the (0, 0) origin coordinate of the UV space.
  • Cursor — Places the starting origin directly at the 2D UV Cursor position.
• Offset (X / Y) — Shifts the entire grid layout along the U and V axes.
• Scale Global — Scales the entire grid, proportionally adjusting both island sizes and inter-island spacing.
• Scale Island — Scales each island individually around its local origin without changing grid cell positions.
• Randomize — Adds random positional jitter to islands within their grid placements.
• Seed — Randomization seed value controlling island distribution jitter when Randomize is enabled.

Arrange Islands example

---

2D Cursor

Align 2D Cursor over the selected island

---
